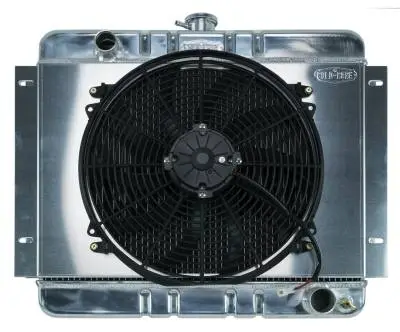

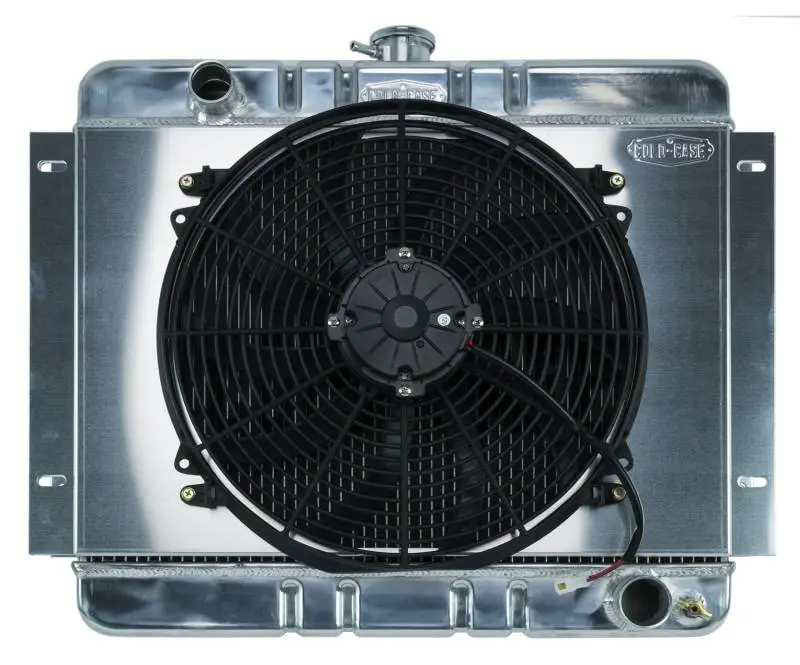

62-67 Chevy Nova Aluminum Radiator And 16 Inch Fan Kit MT Cold Case Radiators

62-67 Chevy Nova Aluminum Radiator And 16 Inch Fan Kit MT Transmission. Will also fit Inline 6 applications with flat fronted fan. Very limited clearance if using our fan/shroud combo. Will have to push motor back and use short water pump. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For manual/standard trans
• Direct fitment for 62-67 Nova
• Old Part Number: RPE540K

Radiator Specs

• Core Height 15.35 inch
• Core Width 22.35 inch
• Overall Height 20.7 inch
• Overall Width 22.35 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.77 inch
