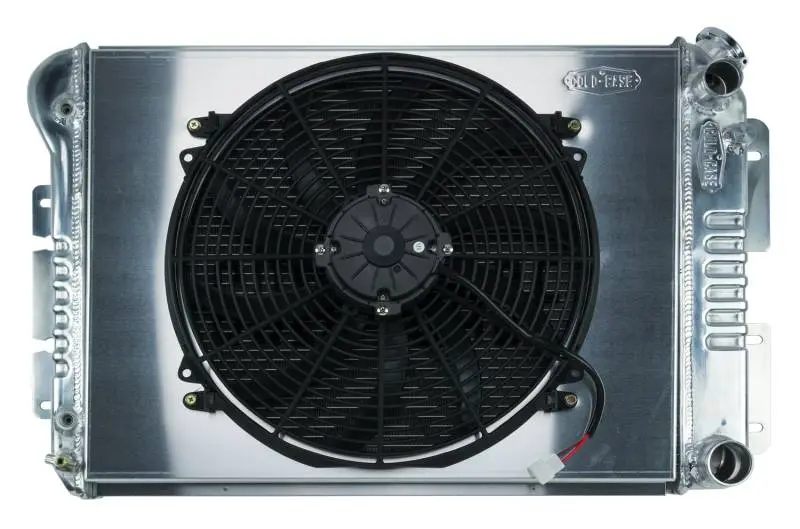

67-69 Camaro/Firebird LS SWAP Aluminum Radiator And 16 Inch Fan Kit Cold Case Radiators

67-69 Camaro/Firebird LS SWAP Aluminum Radiator And 16 Inch Fan Kit. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• (2) 1.25 inch Tubes
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• Dual Flow Design
• Direct fitment for 67-69 F-Body cars with LS motors
• Old Part Number: RPE547AK

Radiator Specs

• Core Height 16.85 inch
• Core Width 23 inch
• Overall Height 19 inch
• Overall Width 30 inch
• Overall Thickness 3 inch
• Upper Hose 1.22 inch
• Lower Hose 1.37 inch
• Tubes (2) 1.25 inch Tubes
