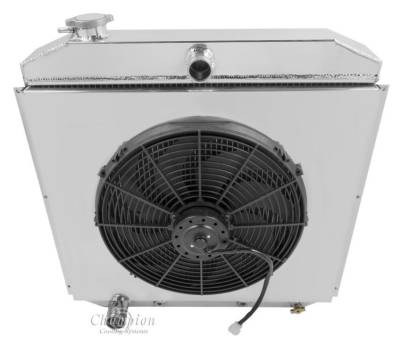

Champion Three Row Radiator for 1957-1960 Ford F-Series Truck

Additional Images

Your Selected Product

Pricing: $265.99

Customize Your Item

- Hose Config -
 * required
Qty:
Free Shipping (Lower 48)
CC5760
Champion Three Row Radiator for 1957-1960 Ford F-Series Truck Six or Eight Cylinder Please specify whether you need the lower hose outlet on the driver's side or the passenger side (the view from the driver's seat) Lifetime Warranty & Free Shipping to the Lower 48 States


We also have this in a Combo with a shroud and electric fan set-up.

Champion Cooling System radiators feature either a two, three or four row core configuration of 5/8" or 3/4” tubes for maximum cooling power, uniform heat transfer and increased air flow and corrosion-resistant lightweight aluminum construction tig-welded (no epoxy) for superior strength. Manufactured at an ISO-Certified Facility to the highest quality standards and precision workmanship in the industry. All are backed by a Limited Lifetime Warranty.

Description

SPECS

Overall Width: 27 3/8"
Overall Height: 26 1/4"
Core Width: 23"
Core Height: 20"
Upper Hose: Center
Lower Hose: Driverside - V8, Passenger Side I-6
Hose Inlet Size: 1 1/2"
Hose Outlet Size: 1 3/4"
Transcooler: Yes
Radiator Cap Included: Yes
